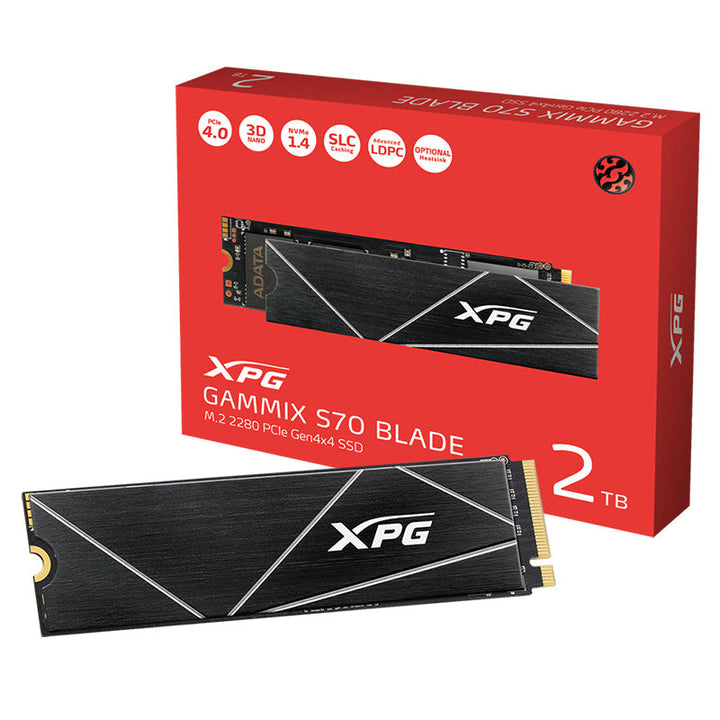

ADATA AGAMMIXS70B-2T-CS Gammix S70 Blade 2TB 2280 PCIe Gen4 M.2 NVMe SSD

Capacity

2TB

Form Factor

M.2 2280

NAND Flash

3D NAND

Controller

IG5236

Dimensions (L x W x H)

80 x 22 x 4.3mm / 3.15 x 0.87 x 0.17inch (with heatsink)

80 x 22 x 3.3mm / 3.15 x 0.87 x 0.12inch (without heatsink)

Weight

10g / 0.35oz (with heatsink)

7g / 0.24oz (without heatsink)

Interface

PCIe Gen4x4

Sequential Read (Max)

7,400MB/s (PC/Laptop)

6,100MB/s (PS5)

Sequential Write (Max)

6,800MB/s

4KB Random Read IOPS(Max)

750K

4KB Random Write IOPS(Max)

750K

Operating Temperature

0°C - 70°C

Storage Temperature

-40°C - 85°C

Shock Resistance

1500G / 0.5ms

MTBF

2,000,000 hours

Terabytes Written (TBW)(Max Capacity)

1480TB

Certifications

CE, FCC, BSMI, KC, Morocco, EAC, RCM, UKCA, RoHS

Remark

1. This product is compatible with the latest Intel and AMD platforms and must be used with a motherboard that supports PCIe 4.0 to achieve optimal performance. Actual performance may vary depending on the hardware and software configurations.
2. This product is backward compatible with PCIe 3.0. If a third-generation PCIe motherboard is used, this product will be able to achieve sequential read/write speeds of 3400/3000MB per second.
3. Test system configuration : Motherboard ASRock X570 Taichi, CPU AMD Ryzen 7 5800X, CrystalDiskMark 7.0.0
4. The SSD is based on the TBW or Warranty period.
5. Visit www.xpg.com/us/support for more details.
