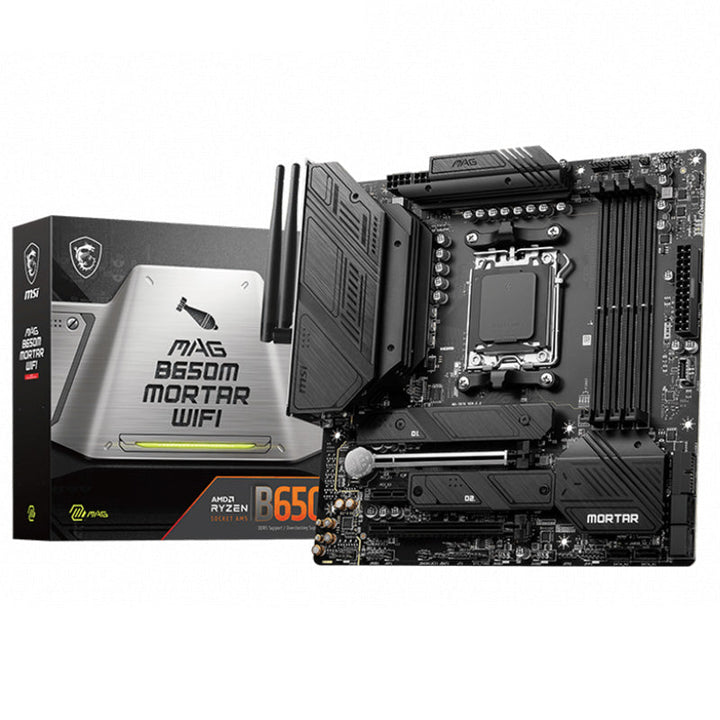

MSI MAG B650M Mortar WiFi AM5 mATX Motherboard (MAG B650M MORTAR WIFI)

CPU

Supports AMD Ryzen „¢ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5

Memory

4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
€¢ 1DPC 1R Max speed up to 7600+ MHz
€¢ 1DPC 2R Max speed up to 6400+ MHz
€¢ 2DPC 1R Max speed up to 6400+ MHz
€¢ 2DPC 2R Max speed up to 5400+ MHz

Onboard Graphics

1x HDMI „¢
Support HDMI^TM 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot

2x PCI-E x16 slot
€¢ Supports x16/x4 (For Ryzen „¢ 9000 and 7000 Series processors)
€¢ Supports x8/x4 (For Ryzen „¢ 7 8700G and Ryzen „¢ 5 8600G processors)
€¢ Supports x4/x4 (For Ryzen „¢ 5 8500G processor)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Audio

Realtek ^® ALC4080 Codec
7.1-Channel High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel

Storage

2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices
6x SATA 6G
€¢ The M2_2 slot will be unavailable when using Ryzen „¢ 5 8500G processor

RAID

Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices*
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
* SATA_A1_A2 do not support RAID function.

USB

4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)

LAN

Realtek ^® RTL8125B 2.5Gbps LAN

Wireless LAN & Bluetooth

AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth ^® 5.3**
* Wi-Fi 6E 6GHz may depend on every country €™s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

Internal IO

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports

LED Feature

4x EZ Debug LED

Back Panel Ports

DisplayPort 1.4

2.5G LAN Port

USB 3.2 Gen 2 10Gbps Type-A

USB 3.2 Gen 1 5Gbps Type-A

Wi-Fi / Bluetooth Antenna

HD Audio Connectors

Flash BIOS Button

HDMI „¢ 2.1 Port

USB 3.2 Gen 2x2 20Gbps Type-C

Optical S/PDIF OUT

Operating System

Support for Windows ^® 11 64-bit, Windows ^® 10 64-bit

Box Content

MSI MAG B650M Mortar WiFi Motherboard

Quick Installation Guide

2 x SATA Cables

EZ M.2 Clips

Cable Sticker

Wi-Fi Antenna

European Union Regulatory Notice

PCB Info

mATX

243.84mmx243.84mm
