Chipset
|
AMD B850
|
|
CPU
|
Supports AMD Ryzen ™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
|
|
Memory
|
2x DDR5 UDIMM, Maximum Memory Capacity 128GB
Memory Support DDR5 10000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen ™ 9000 Series Processors max. overclocking frequency:
™ 1DPC 1R Max speed up to 8200+ MT/s
™ 1DPC 2R Max speed up to 8000+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
™ The DIMM slots on this motherboard only have double-sided latches.
™ Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product €™s Support page or visit https://www.msi.com/support/.
|
|
Onboard Graphics
|
1x HDMI ™
Support HDMITM 2.1 with FRL port, supporting a maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
|
|
Slot
|
1x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E1 slot
™ Supports PCIe 5.0 x16 (For Ryzen ™ 9000/ 7000 Series processors)
™ Supports PCIe 4.0 x8 (For Ryzen ™ 8700/ 8600/ 8400 Series processors)
™ Supports PCIe 4.0 x4 (For Ryzen ™ 8500/ 8300 Series processor)
|
|
Audio
|
Realtek ® ALC4080 Codec
7.1-Channel USB High-Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
Supports S/PDIF output
|
|
Storage
|
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices
2x SATA 6G
M.2_1 slot
™ Supports up to PCIe 5.0 x4 (For Ryzen ™ 9000/ 7000 Series processors)
™ Supports up to PCIe 4.0 x4 (For Ryzen ™ 8000 Series processors)
M.2_2 slot
™ Supports up to PCIe 4.0 x4
™ Supports 2280 storage devices
|
|
RAID
|
™ Supports RAID 0, and RAID 1 for SATA storage devices
™ Supports RAID 0, and RAID 1 for M.2 NVMe storage devices
|
|
USB
|
2x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
|
|
LAN
|
1x Realtek ® 8126 5G LAN
|
|
Internal IO
|
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
1x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Addressable V2 RGB LED connector (JARGB_V2)
1x TPM pin header(Support TPM 2.0)
2x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
|
|
Wireless LAN & Bluetooth
|
Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth ® 5.4**, MLO, 4KQAM
* 6GHz band support may depend on every country €™s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor €™s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
|
|
LED Feature
|
4x EZ Debug LED
1x EZ Memory Detection LED
|
|
Back Panel Ports
|
Clear CMOS Button
5G LAN
Wi-Fi / Bluetooth
Audio Connectors
Flash BIOS Button
HDMI ™
USB 5Gbps Type-A
USB 10Gbps Type-A
USB 20Gbps Type-C
USB 10Gbps Type-A
Optical S/PDIF Out
|
|
Operating System
|
Support for Windows ® 11 64-bit
|
|
Box Content
|

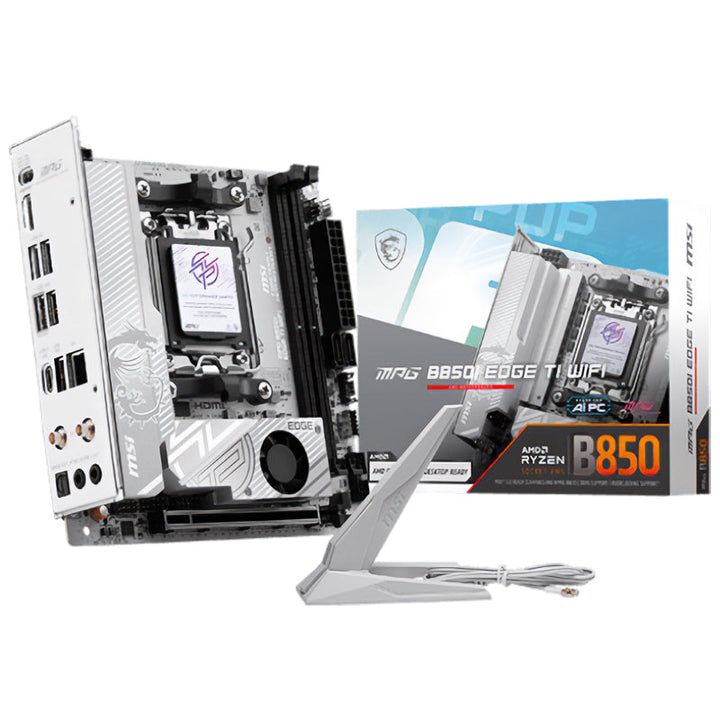

MSI MPG B850I EDGE TI WIFI Motherboard
European Union Regulatory Notice
Quick Installation Guide
Cable Sticker
EZ Wi-Fi Antenna
SATA Cable
3x M.2 Screws
ARGB Extension Cable
1 to 3 EZ Conn-Cable (V2)
EZ Front panel cable
|
|
PCB Info
|
Mini-ITX
170mmx170mm
|
